single would Low Temperature Cross Linked Film
Product Name | Low Temperature Cross Linked Shrink Film | ||||
Color | Transparent | ||||
Available thickness | 12,15,19um | ||||
Type | Perforated No-perforated | ||||
Available width | Single Wound:200mm-3200mm Center Folded:150mm-1000mm | ||||
MOQ | 2000kg | ||||
Delivery time | 7-10days/20GP,10-15days/40GP | ||||
Packing | One roll in one box,all boxes will be packed with plywood pallets | ||||

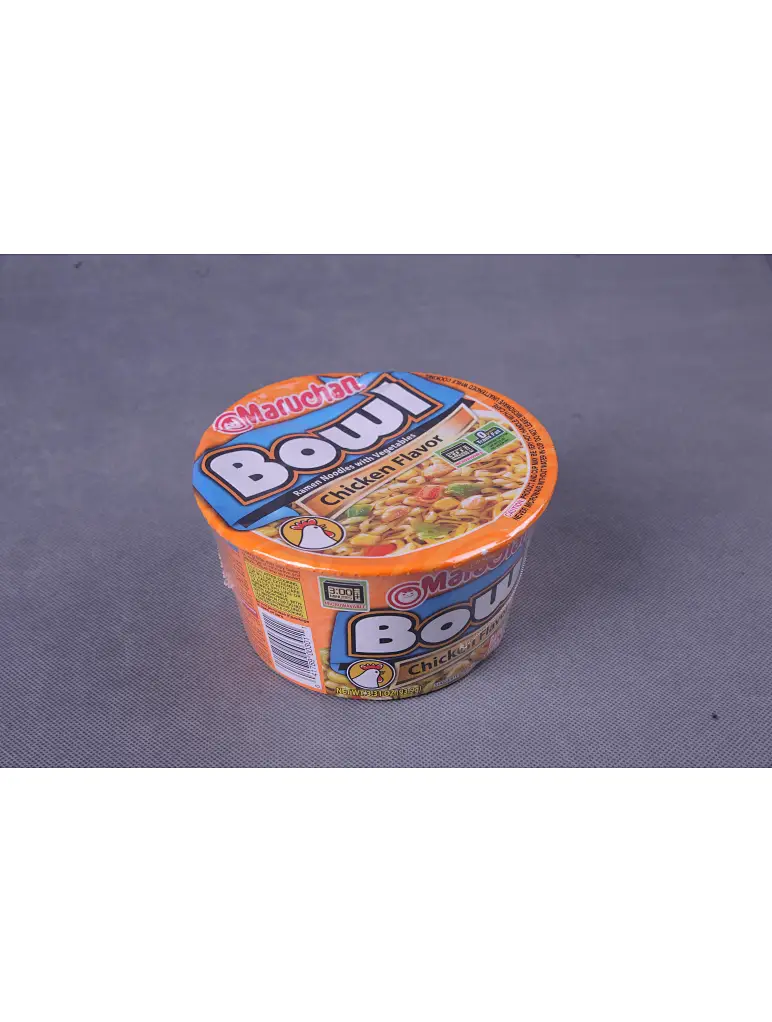

Application | Low temperature cross Linked film is a kind of high transparency, excellent sealing strength and soft shrinkage film, which has the characteristics of low shrinkage and can shrink quickly at low temperature,it is Ideal heat shrink film for packaging chocolate and other products. The effect of low temperature shrinkage can also protect the heat sensitive products,it is suitable for all types shrinking machines. | ||||
Physical Properties | |||||
Test Item | Unit | Astm Test | Typical Values | ||
THICKNESS | μm | 12 | 15 | 19 | |
OPTICS | |||||
Haze | D1003 | 2 | 2.2 | 2.4 | |
Gloss @ 45Deg | D2457 | 80 | |||
Clarity | D1746 | 90.1 | |||
SHRINKAGE PROPERTIES | MD | TD | |||
Free Shrinkage 90℃ | % | D2732 | 20 | 25 | |
100℃ | 35 | 40 | |||
110℃ | 59 | 60 | |||
120℃ | 78 | 79 | |||
TENSILE | |||||
Tensile Strength(MD) | N/mm² | D882 | 100 | ||
Tensile Strength(TD) | 100 | ||||
Elongation(MD) | % | 110 | |||
Elongation(TD) | 105 | ||||
SEAL STRENGTH | |||||
MD/Hot Wire Seal | N/15mm | F88 | 13 | 16.2 | 19.5 |
TD/Hot Wire Seal | 13 | 17 | 20 | ||
COF(Film To Film) | |||||
Dynamic | D1894 | 0.2 | |||
Static | 0.18 | ||||
Max Storage Temperature | ℃ | 35 | 0.22 | 0.2 |
Packaging Details:
1. Wrap the film roll with transparent POF film: dust-proof.
2. Put paperboard and plastic cover at two edges of the roll: protect the paper core and the edges of POF film.
3. Put the roll in one quality carton: protect the POF film.
4. Put packed cartons on pallets, and wrap the pallets well by stretch film on pallet machines.
5. Put pallets in a container, use rope, and airbag to fix the pallets.
FAQ:
Q17:Does your product have warranty service? How long is the warranty period?
A17:yes,we have,it’s 12months.
Q18:Is it all right to make customer's own brand name?
A18:yes,we can print your customer’s brand name on the film or box.
Q19:How long i can get the feedback after we sent the enquiry?
A19:We will reply you within 12 hours in working day.
Q20:Can you do our design?
A20:Of course, your customized design (OEM) is available.
Q21:what’s your packing way?
A21:One roll in one box,all boxes will be packed with plywood-pallets
Q22: Do you deal with urgent orders?
A22 :Sure. Please contact ASAP for details.
